CHAMFER EDGE TRIANGLE

Chamfer edges for the precast industry.

Product Amount Amount
per bundle per pallet

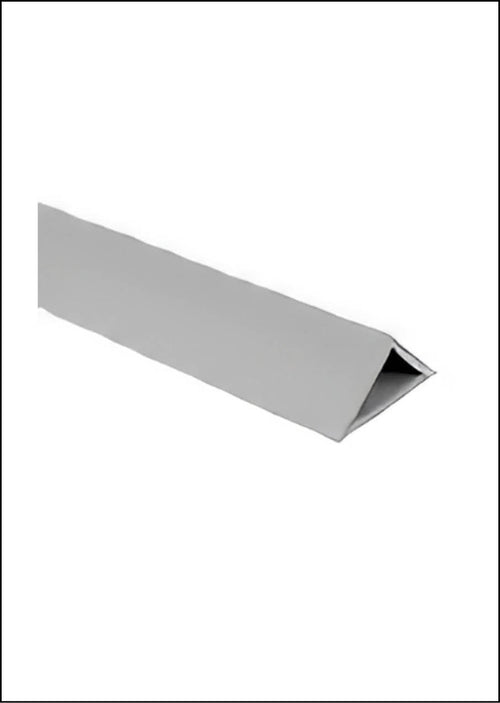

Chamfer Edge triangle 11 mm a=11 b=15 c=11 mm L=2500mm 100 9.000
Chamfer Edge triangle 15 mm a=15 b=21 c=15 mm L=2500mm 100 5.600
Chamfer Edge triangle 20 mm a=20 b=28 c=20 mm L=2500mm 100 5.500
Chamfer Edge triangle 25 mm a=25 b=34 c=25 mm L=2500mm 100 2.700
Chamfer Edge triangle 30 mm a=30 b=42 c=30 mm L=2500mm 100 2.450

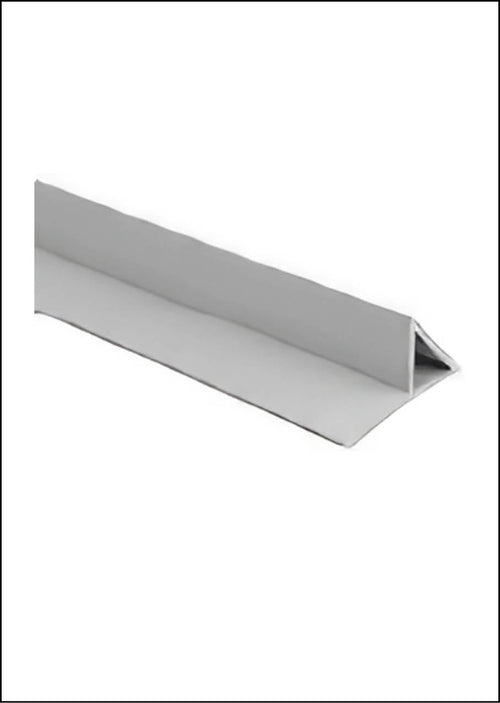

Chamfer Edge triangle 11 mm w. nailing flange a=11 b=15 c=26 mm L=2500mm 100 5.400
Chamfer Edge triangle 15 mm w. nailing flange a=15 b=21 c=32 mm L=2500mm 100 5.500
Chamfer Edge triangle 20 mm w. nailing flange a=20 b=28 c=37 mm L=2500mm 100 4.500
Chamfer Edge triangle 25 mm w. nailing flange a=25 b=34 c=46 mm L=2500mm 100 2.450
Chamfer Edge triangle 30 mm w. nailing flange a=30 b=42 c=53 mm L=2500mm 100 1.800
Nailing flange thickness: 1mm

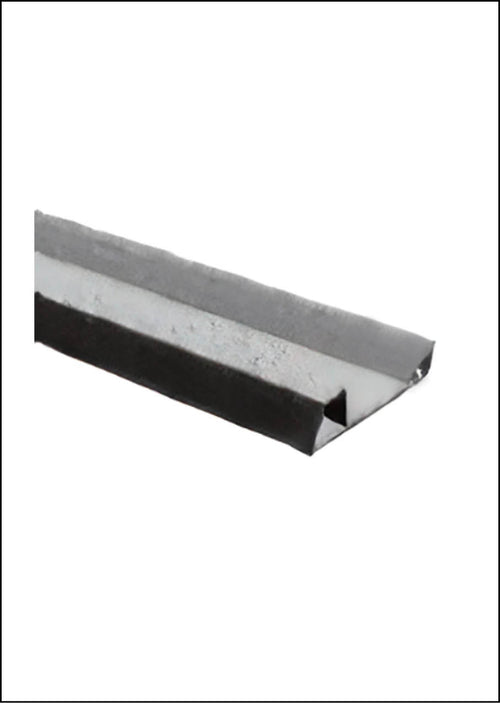

Chamfer Edge dropprofile a=12 b=55 c=16 mm 40 1.080
Chamfer Edge dropprofile a=10 b=45 c=16 mm 40 1.080
Chamfer Edge dropprofile a=10 b=31 c=12 mm 40 1.080
Chamfer Edge triangle w. nailing flange solid a=6,5 b=9 c=20,5 mm 100 6.000
Chamfer Edge triangle w. nailing flange solid a=10 b=14,2 c=25 mm 100 5.600
Chamfer Edge triangle w. nailing flange solid a=15 b=21,2 c=31 mm 100 2.750
Nailing flange thickness: 1mm
